Pumps & Equipment Products

Submersible Borehole Pumps

• Compact, Practical, Reliable and easy to Maintain and Service
• High Resistance to Sand and Galvanic Corrosion
• High Hydraulic Efficiencies across the range (>80%)
• Components interchangeability for the complete series
• Materials: Micro-cast Stainless Steel, Cast Iron, Noryl, Bronze
• Solids content with the same hardness and granulometry of silt 150 g/m³
• Suitable for lifting water that is chemically and mechanically aggressive


Operating Data

• Capacity up to 350 l/s
• Manometric head up to 850 m
• Power up to 450 kW
• Rotation speed: from 960 to 2950 r/min


Vertical Turbine Pumps

• Compact, Practical and Reliable
• High Resistance to Sand and Galvanic Corrosion
• High Hydraulic Efficiencies across the range (> 80%)
• Very easy Maintenance and Service
• Components interchangeability for the complete series
• Materials: Micro-cast Stainless Steel, Cast Iron, Noryl, Bronze
• Solids content with the same hardness and granulometry of silt 150 g/m³
• Suitable for lifting water that is chemically and mechanically aggressive
• Pump completely made of Corrosion-proof components
• Resistance to Sand Corrosion
• Possibility of being driven by vertical mounted electric motor or diesel engines


Operating Data

• Capacity up to 350 l/s
• Manometric head up to 850 m
• Power up to 450 kW
• Rotation speed: from 960 to 2950 r/min

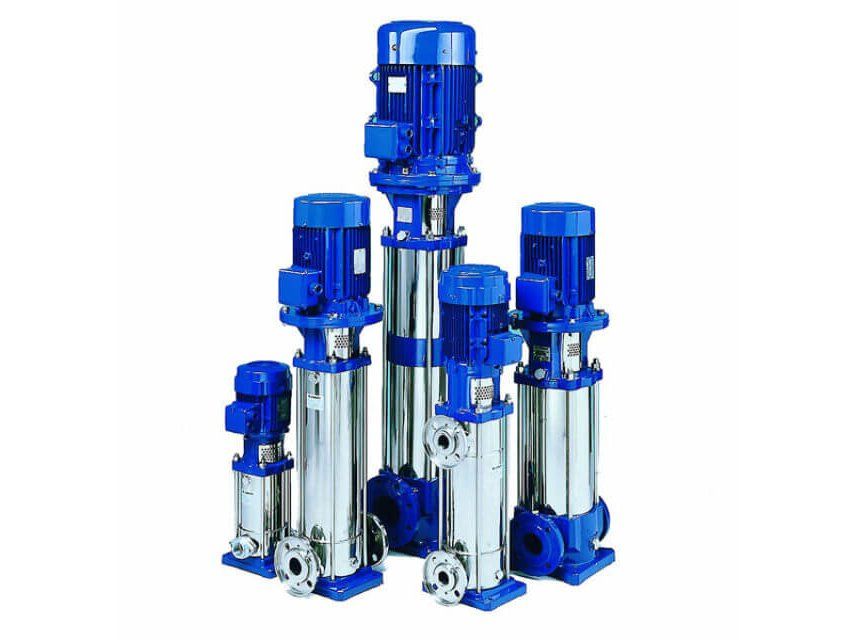

Vertical Multistage Pumps

• Compact, Practical and Reliable for most applications for Pressure Boosting
• High Quality Manufacturing
• Silent Operation
• High Efficiency Motors
• (15°C) Degrees to 120°C Liquid Temperature Range
• Available in Single and Three Phase
• Available with V.S.D., Inverters, Panels, Pressure Vessels, etc.
• Materials: Stainless Steel
• WRAS Approved


Operating Data

• Capacity up to 20 l/s
• Manometric head up to 285 m
• Power up to 37 kW
• Special executions upon request


Bespoke Booster Sets

• Compact, Practical and Reliable for most applications of Pressure Boosting
• High Quality Manufacturing
• Silent Operation
• (15) Degrees to 120 Degrees Liquid Temperature Range
• Available in Single and Three Phase
• Available with V.S.D., Inverters, Panels, Pressure Vessels, etc.
• Materials: Stainless Steel
• Standard booster sets mainly comprise of either a dual pump system or a triple pump system
• Booster set manifold manufactured from fully welded 316 stainless steel tube and chassis
• Booster sets control system comes with either a variable speed drive or a fixed speed (with Direct on Line starting up to 5.5 kW and Star/Delta starting above 5.5 kW)
• Booster Sets are supplied with epoxy paint finished steel shell pressure vessels that are sized according to the selected duty requirements and design parameters
• Control Panels c/w door interlocked isolator, Hand / off / Auto switches, run & trip lamp for each pump, volt free alarm output, and alarms for pump failure, low water supply, low and high water pressure
• Control Panel Cabinet is fan ventilated with an epoxy steel finish

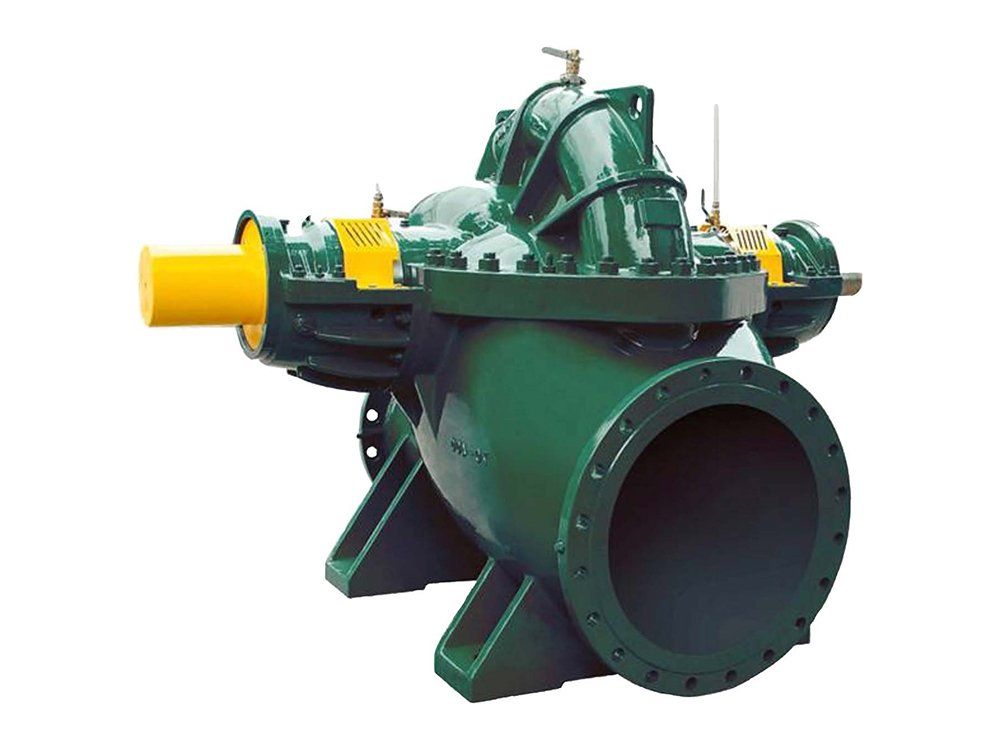

Surface Pumps

• Compact, Practical and Reliable
• High Quality Manufacturing
• Single/Multi Stage
• Available with Adjustable Packing or Mechanical Seal
• High Quality Manufacturing (Nodular Engineering)
• Can be used with Diesel or Electric motors (2 and 4 Pole)
• Hydraulic Pressure balancing for consistent and efficient pressure
• High Performance and Peak Hydraulic Efficiency
• Materials: Cast Iron and Copper alloy (Option for Bronze or Stainless Steel Impeller)


Operating Data

• Capacity up to 5000 l/s
• Manometric head up to 1000 m
• Power up to 650 kW
• Special Executions upon request


Diesel Driven Pumps

• 4 Cylinder engine or 6 cylinder engine
• Horizontal, end suction multi-stage centrifugal pump with SAE flanging
• Heavy duty tank chassis, 2 wheels or 4 wheels front and rear adjustable support jacks and removable drawbar
• Priming Pump - hand operated or automatic operation
• Battery control
• Fully guarded to CE standards and CE plated


Optional Acoustic Canopy Unit

• As above but with lockable Acoustic Enclosure
• Exhaust is mounted inside acoustic canopy for quieter operation
• Noise Output rated between 74 and 78 dB


PTO Tractor Pumps

• Trailer mounted for flexible & portable use.
• Wide range of flows and pressures.

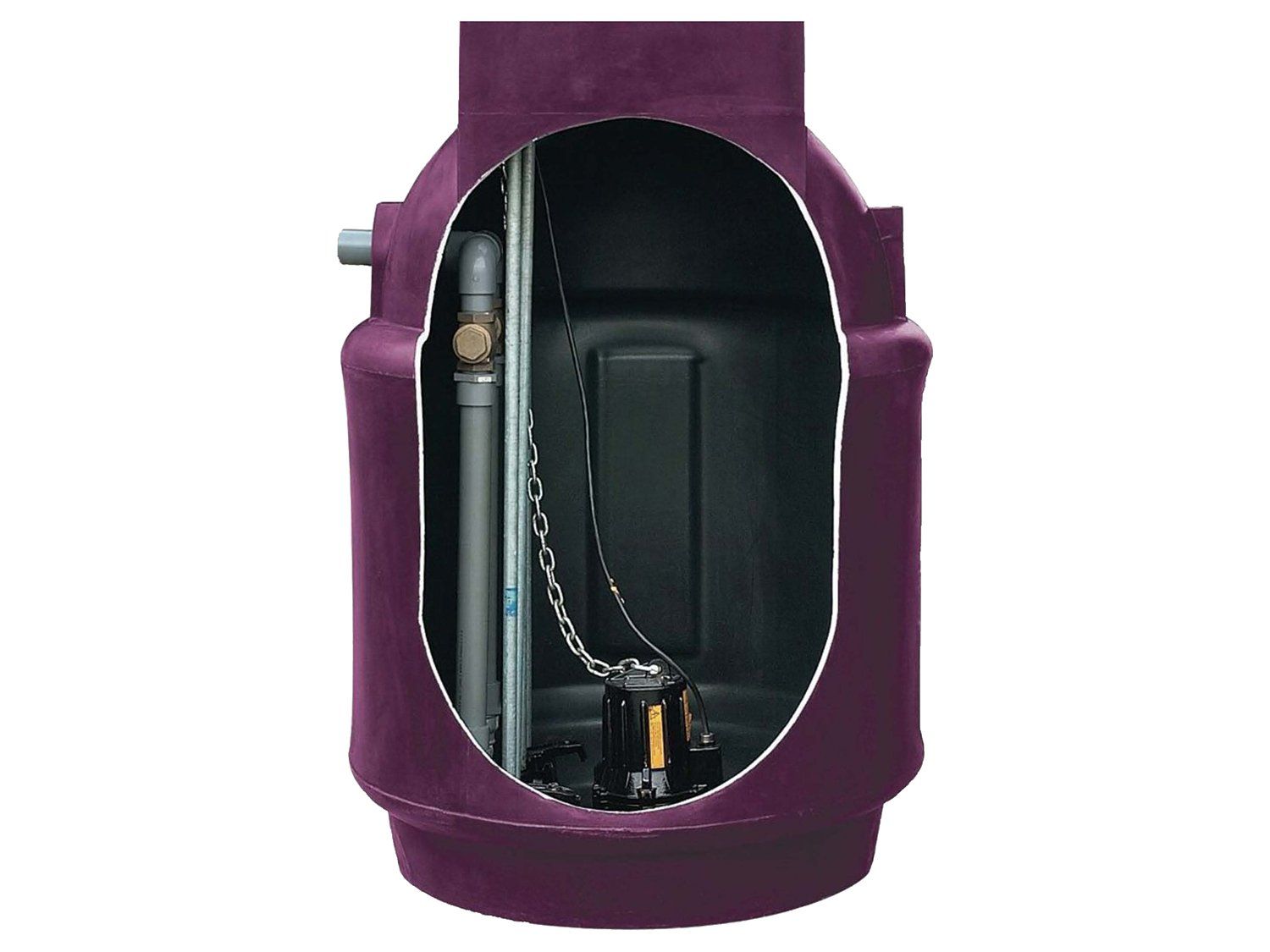

Bespoke Package Pumping Station

• Bespoke Solutions for Residential to Industrial Applications
• High Quality Manufacturing
• Ideal for conveying Dirty Water containing Sewage with high concentrations of solids
• Easy to use
• Compact, Reliable and Easy to Install
• Single and Twin Pump Options
• Materials: GRP Tank, Cast Iron

Design

Although the Package Pump Stations are individually designed to suit your needs, they are built from standard components for rapid delivery. Twin or single pump designs are available, for either 415/3/50 or 240/1/50 power.

Packaged pump stations are the ideal solution for raising waste water to a higher level. Where low-lying properties cannot drain by gravity, AMES has the solution. The stations are delivered completely pre-assembled for easy, quick installation. The range includes units for all applications from a single domestic dwelling to a large industrial estate.

Automatic Controls

Fully integrated controls are provided, offering automatic control via a set of float switches which sense the liquid level. Pump overload protection and high level alarm come as standard.

Robust Construction

The rugged, reinforced plastic chambers are pre-assembled with heavy-duty PVC, galvanised or flanged pipe work and valves. Galvanised guide rails, lifting chains and access cover are incorporated for ease of pump removal and maintenance.

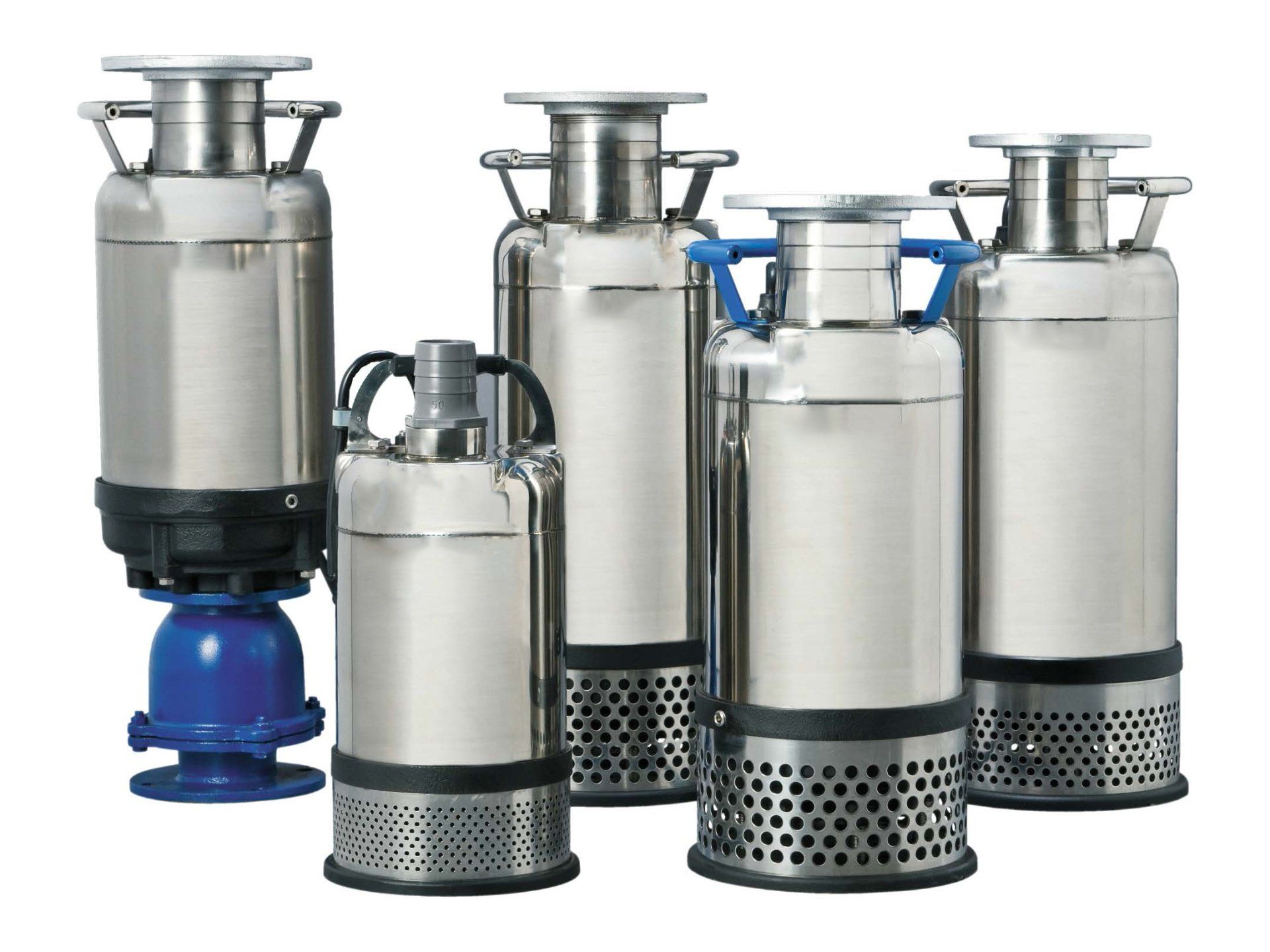

Drainage Pumps

• Modern, Compact, Practical and Reliable with exceptional consolidation design
• Ideal for conveying dirty water containing mud and sand
• High Quality Manufacturing
• Materials: Cast Iron or Stainless Steel (304 & 316)
• Option for High Chrome Alloy Impeller (Steel Hardness of 55-60 RC)
• Sizes 2” - 6” Discharge, Single and Three Phase Versions
• Option for pumps equipped with a Vortex Impeller for Residential and Industrial Drainage Systems
• Option for pumps equipped with a shredder for Residential and Industrial Drainage Systems


Operating Data

• Capacity up to 50 l/s
• Manometric head up to 41 m
• Power up to 7.5 kW
• Special Executions upon request

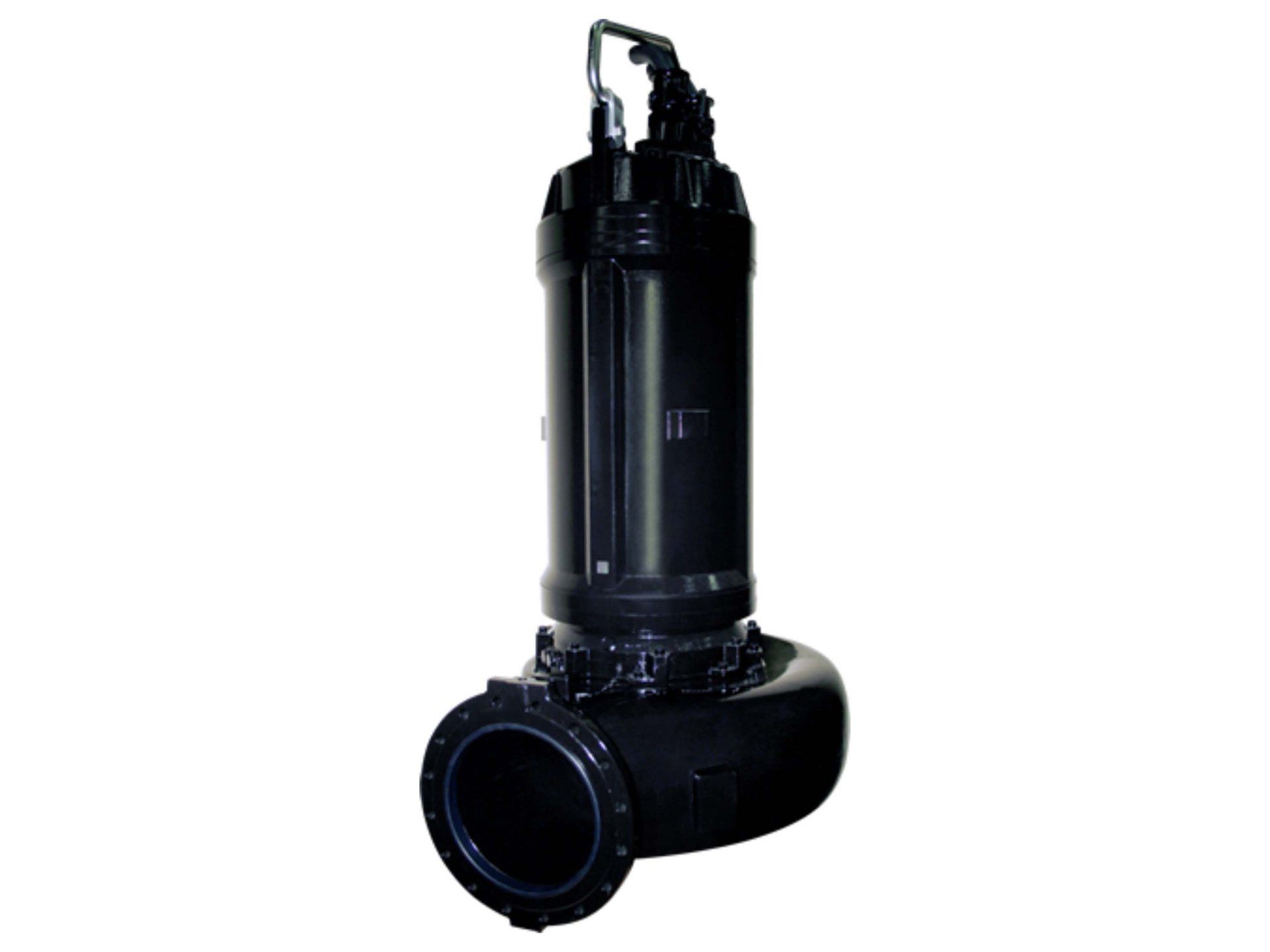

Submersible Sewage Pumps

• Modern, Compact, Practical and Reliable
• High Quality Manufacturing
• Submersible & Surface Mounted with horizontal or vertical version options for installation in dry chambers
• Ideal for conveying dirty water containing Sewage with high concentrations of solids
• Impellers with Anti-Clogging device, Double Mechanical Seals
• Resistance to Abrasion
• High Performance, low temperature motors (EX-proof Available conforming to ATEX II 2G Exd IB T4)
• Cooling Jackets available for Dry Chambers
• Impeller Options: Vortex, Single & Double channel and hardened Stainless Steel Shredder
• Materials: Cast Iron, Stainless Steel


Operating Data

• Capacity up to 680l/s
• Manometric head up to 65 m
• Power up to 180kW
• Special Executions upon request


Control Panel

• Modern Control and protection panels for electric pumps and motors
• Single Phase & Three Phase
• Basic and Deluxe Versions to suit ALL applications and budgets
• Range of accessories to suit EVERY application
• Internally mounted, Weather-proof, increased ambient temperature protection available
• Microprocessors for single to multiple electric pumps, multifunctional for all installations that require pioneering systems for a sophisticated control


Operating Data

• Single Phase up to 7.5 kW
• Three Phase up to 250 kW
• IP55 to IP68 Protection
• Special Executions upon request
